4K HDMI KVM Fiber Optic Extender, DP KVM Fiber Optic Extender
1.Overview
The 4K HDMI KVM fiber optic extender developed and produced by Beijing HCSTCOM CO. Ltd, supports single-mode optical fiber transmission distance of 10-80 kilometers. The product adopts point-to-point connection, supports 1 channel 4K HDMI high-definition video, 1 channel bidirectional 3.5mm audio, 1 channel RS232 bidirectional data, 1 channel reverse boot up, 1 channel reverse IR control, 1 channel USB 2.0 KVM function. It can realize remote control and management through USB mouse and keyboard. This device is mainly used in research and development of security systems, command centers, video conferencing systems, computer room KVM and remote conferences, etc.
2.Main Features
Support transmitter 1 channel HDMI input, 1 channel HDMI loop out; receiver 2 channels HDMI output
1 channel forward 3.5mm analog audio, 1 channel reverse MIC audio transmission;
Support 1 channel RS232 data bi-directional transmission;
Support 1-way reverse boot up function (optional);
Support 1 channel reverse IR control function;
Support USB2.0 mouse and keyboard for remote control and management;
Support USB2.0 U disk and printer signal transmission;
Support HDMI 1.4 standard, compatible with HDMI 1.3A, DVI1.0;
4K30 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200 resolutions;
Single-mode optical fiber transmission 10-80KM, multi-mode 0-550M;
Support 4U card chassis and desktop optional;
Support free switching between two transmission modes: network cable or fiber optic cable; (CAT6 network cable transmission 120-140 meters)

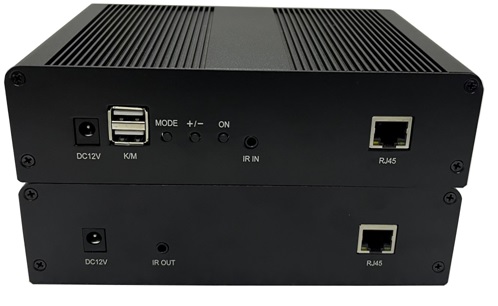

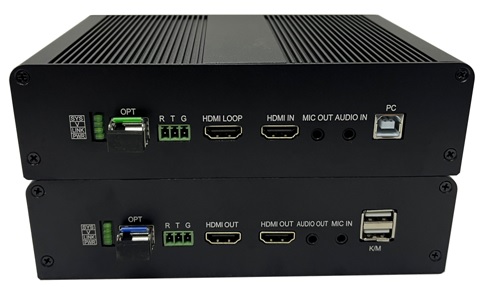

3.Product image
4.Technical Parameters
|
Technical Parameters |
Transmitter -TX |
Receiver -RX |
|
HDMI standard |
HDMI1.4,compatible with HDMI1.3A |
|
|
HDCP standard |
HDCP1.4 |
|
|
Optical fiber interface |
SFP optical interface (LC/PC) Wavelength of 1310/1550NM |
|
|
Transmission distance |
Single-mode 10-80km; multi-mode 0-550M |
|
|
Video bandwidth |
10Gbps |
|
|
Video resolution |
1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600、1280*720P 50/60Hz、1920*1080P 25/30/60Hz、3840*2160 30Hz |
|
|
Audio formats |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
|
EDID passthrough |
Support |
|
|
KVM function |
USB2.0 Mouse, Keyboard; Support U disk and printer |
|
|
Input TMDS signal |
0.7~1.2Vp-p |
|
|
Input DDC signal |
5Vp-p |
|
|
Input |
HDMI INx1，HDMI LOOPx1, USB-A×1 3.5×1 |
SFP×1，RJ45×1, USB-A×4， 3.5×2， |
|
Output |
SFP×1 3.5×1，RJ45×1； |
HDMI OUT×2, 3.5×1 |
|
RS232 |
3 pin green terminals |
3 pin green terminals |
|
Infrared interface |
Bidirectional infrared, 3.5 interface |
Bidirectional infrared, 3.5 interface |
|
HDMI Interface |
Type A |
|
|
Mechanical parameters |
Transmitter-TX |
Receiver-RX |
|
Material |
Aluminum alloy |
|
|
Product size |
180(L) x 123(W) x 47(H)mm |
|
|
Net weight |
400g |
400g |
|
Power specification |
12V/1A |
12V/1A |
|
Power consumption |
5W |
5W |
|
Operating temperature |
-0～50℃ |
|
|
Storage temperature |
-30～70℃ |
|
|
Relative humidity |
0～90%(non-condensing) |
|
