1. Product Introduction
The 4K30 DP KVM Fiber Extender, developed and produced by Beijing HCSTCOM Co., Ltd, can transmit 10-80km through single mode optical fiber. It supports point-to-point connection. Support 1 channel 4K DP1.2 HD video, 1 channel 3.5mm audio, 1 channel bidirectional RS232, 1 channel reverse infrared control, 1 channel reverse boot, and 1 channel USB2.0 KVM function, can achieve remote control and management through the USB mouse and keyboard. It is mainly used in the development of security systems, command centers, video conferencing systems, computer room KVM and remote conferencing.
2. Main Features
·Support transmitter 1ch DP input, receiver 1ch DP output
·1ch forward 3.5 analog audio, 1ch reverse MIC audio;
·Support 1ch bidirectional RS232;
·Support 1ch reverse boot (optional);
·Support 1ch reverse infrared control;
·Support USB2.0 mouse and keyboard to achieve remote control and management;
·Support USB2.0 U disk and printer signal transmission;
·Support DP1.2, compatible with DP1.0;
·4K30 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200;
·Single-mode fiber transmission 10-80KM, multi-mode 0-550M;
·Support 4U rack mounting and desktop PC optional;
·Support two transmission modes of cable or optical fiber, free switching; (CAT6 cable transmission 120-140 meters)
|
Parameter |
RX |
|
|
DP Version |
||
|
HDCP version |
HDCP1.3 |
|
|
Optical Interface |
SFP Optical Interface (LC/PC) wavelength 1310/1550NM |
|
|
Transmission Distance |
Single mode 10-80 km, multi-mode 0-550 m |
|
|
Band Width |
10Gbps |
|
|
Resolution Supported |
1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600、1280*720P 50/60Hz、1920*1080P 25/30/60Hz、3840*2160 30Hz |
|
|
Audio Format |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
|
EDID unvarnished transmission |
Support |
|
|
KVM |
USB2.0@ Mouse, keyboard, support U disk, printer |
|
|
TMDS Input |
0.7~1.2Vp-p |
|
|
DDC Input |
5Vp-p |
|
|
Input |
DP In x1, USB-A ×1, 3.5×1 |
SFP×1, RJ45×1, USB-A×4, 3.5×2 |
|
Output |
SFP×1, 3.5×1, RJ45*1 |
DP Out ×1, 3.5×1 |
|
RS232 |
3PIN Green terminal |
3PIN Green terminal |
|
Reverse, 3.5mm |
Reverse, 3.5mm |
|
|
DP Interface |
Standard DP interface |
|
|
Mechanical Parameter |
TX |
RX |
|
Material |
Metals |
|
|
Size |
150.0(L) x 120(W) x 28(H)mm |
|
|
Net Weight |
260g |
260g |
|
Power Specification |
12V/1A |
12V/1A |
|
Power Consumption |
5W |
5W |
|
Operating Temperature |
0～50℃ |
|
|
Storage Temperature |
-30～70℃ |
|
|
Relative Humidity |
0～90% (RH) |
|

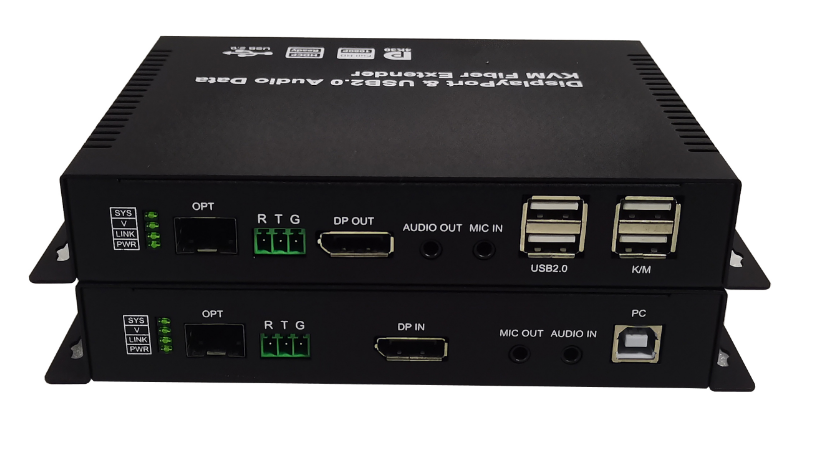

4. Product Picture
