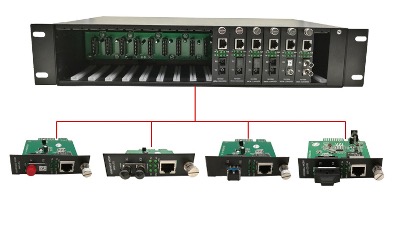

16-Slot Rack Mount Media Converter
1. Description
2U 16-Slot Rack Mount Media Converter is a centralized power supply conversion center used in the equipment room. It adopts centralized main and standby power supplies and can switch randomly. It is equipped with 16 module plugs, enabling multiple modules to work simultaneously, support hot plug,plug and play.
2. Function Features
?The configuration of main and standby power supplies ensures the stability of the system
?AC220V power supply, suitable for a variety of working environment
?16 slots, can be directly inserted into the subrack, convenient for users to choose
?Multiple modules can work at the same time, and each module supports hot plug function
?Modular power supply, stable and long life
?Standard subrack, can be installed in the equipment room rack, easy to unified management and maintenance
?Modular power supply design, easy maintenance, better shielding, prevent the electromagnetic signal generated by the power from interfering the normal operation of the module group
?A maximum of 16 media converters modules can be inserted into the rack at the same time. Each media converter module can be of different models
?Each module can work independently on the subrack, or cooperate with each other, provide network diagnosis for themself
?The configuration of main and standby power supplies ensures the uninterrupted operation of the system
?Support multiple media converter modules work at the same time, greatly improving the applicability of the system
?Applicable to areas with large power fluctuation range
?Applicable to centralized network management of Telecom,CATV and Ethernet optical fiber data
?Applicable tooptical fiber net for centralized intelligent management
?Applicable to equipment room with centralized management and control
3. Performance Indicators
|
Name |
16-slot small card rck mount media converter |
|
Standard |
IEEE802.3,IEEE802.3U,IEEE802.3ab,IEEE802.3x，IEEE802.1D,IEEE802.1Q,IEEE802.1P |
|
Media Converter Module |
Max 16 *10/100M or 10/100/1000M adaptive multi-mode and single-mode media converter |
|
Cable Type |
10 Base-T:3/4/5,100 Base-TX:5 UTP; Transmission Distance: 100m max |
|
LED Indicator Light |
Power state, Network state |
|
Fiber Optic Type |
Multimode fiber,transmission:550m; Singlemode fiber,transmission distance:10-100km |
|
Power Dissipation |
＜95W |
|
BTBF |
Compliant with telecom class standards, average more than 80,000 hours |
|
Installable Ttype |
1*10/100M base-Tx 1*Fx 1*10/100/1000M base-Tx 1*Gigabit Fx |
|
Environmental Specification |
Operating Temperature: -30℃ ～ +70℃ Storage Temperature: -30℃ ～ +75℃ Relative Humidity: 0～95% (no condensatio) |
|
Power Supply |
Input operating voltage: 100～ 240V AC |
|
Size |
423(L)mm ×230(W) ×90(H) 19 inch, 2U |
|
Weight |
About 8kg |
