HDMI2.0 to 12G-SDI Converter HDMI2.0 to 12G-SDI & Fiber Converter
1. Overview

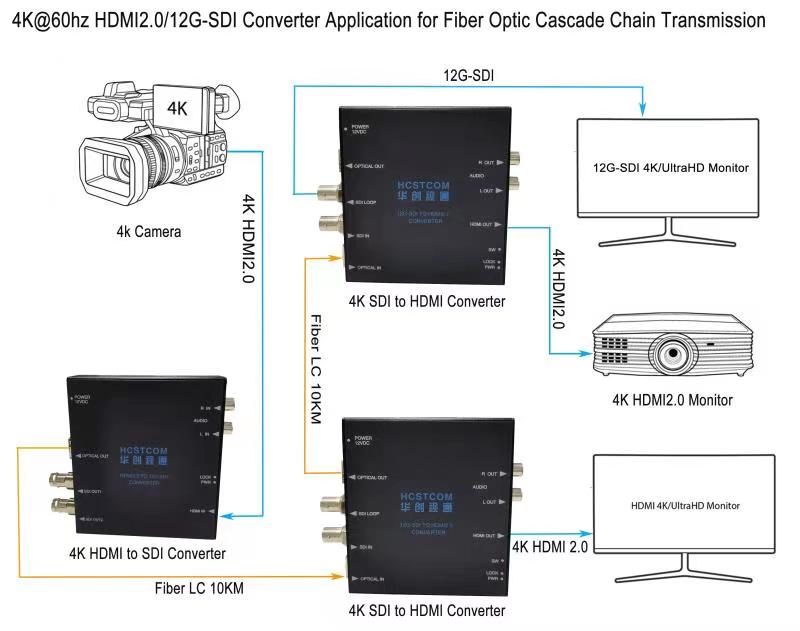

The HDMI 2.0 to 12G-SDI converter produced by Beijing HCSTCOM Co.,Ltd converts HDMI2.0 signals to12G-SDI,Achieving 4K/UHD single link output. It includes2-ch 12G-SDI distributed amplifier outputs. Supports 1 SFP optical port output,Supports transmission of HDMI 4K/ UHD signal up to10-80km through single-mode single-fiber. Supports 2-channels of embedded audio from an HDMI source or two-channel analog audio (RCA) input. It can be used together with our 12G-SDI fiber receiver as HDMI input and SDI output fiber extender
2. Product features
? Converts 1-ch HDMI 2.0 signal to one 4K/ UHD 60P 12G-SDI with loop out;
? 12G-SDI coax and optical SFP port could output together
?Supports transmission of HDMI 4K/ UHD signal up to 10-80km over SFP fiber port;
? Embedded audio can be selected from HDMI or external analog audio;
? supports 10-bit 4:2:2 Input and Output up to 4K 60Hz;
? Supports HDCP 2.0B Blu-ray protocol;
? Real-time HDMI HDR signal transmission,HDR signaling metadata pass-through and optional override;
? LED display power supply and signal lock status;
? 12V dc power supply.
3.Technical Specifications
|
HDMI Video Input
|
1x HDMI Type A connector*，HDMI v2.0 ·YCbCr 4:2:2/4:4:4/4:2:0 ·RGB 4:4:4, SMPTE or Full level ·8, 10,12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit) |
|
Video InputFormats |
(4K) 4096 x 2160p、(UHD) 3840 x 2160p、(2K) 2048 x 1080p、(HD) 1920 x 1080p、(HD) 1920 x 1080i、(HD) 1280 x 720p、(SD) 720 x 576i (SD) 720 x 480i |
|
HDCP |
Support |
|
EDID |
Simulate |
|
12G-SDI Video Ouput
|
·2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 ·YCbCr 4:2:2/4:4:4 ·RGB 4:4:4, SMPTE or Full level ·10-bit |
|
12G-SDI Optical Output
|
1x 12G-SDI fiber LC connector, SMPTE 259/292/424/2081/2082 Nominal Wavelength：Tx 1260 nm（Min）、1310 nm（TYP）、1620 nm（Max）（CWDM wavelength optional） Optical Power：-5 dBm（Min），0.5 dBm（Max） |
|
12G-SDI Resolution |
·1x 12 Gb SDI (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 ·1x 6 Gb SDI (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30 (UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30 ·1x 3 Gb SDI (Level A or B-Dual Link) (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 ·1x 1.5 Gb SDI (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 30，50, 59.94, 60 ·1x 270 Mb SDI,(SD) 720*576I 50 |
|
Audio Pass-Through Formats |
· PCM |
|
AudioInput Digital |
·HDMI embedded audio, 24-bit, 8-channel |
|
AudioInput Analog |
· 2x RCA style connector, 2-channel -10dBu (nominal) |
|
AudioOutput Digital |
· HDMI embedded audio, 24-bit(SD limited to 20-bit),16-channel |
|
Size (w x d x h) |
(105 x 92x 29 mm) |
|
Weight |
(0.3 kg) |
|
Power
|
12V DC，10W |
|
Environment
|
Safe Operating Temperature：0 to40℃ |
*The Converteruse approximately 10 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack with otherdevices.
