Product Introduction

1. Overview

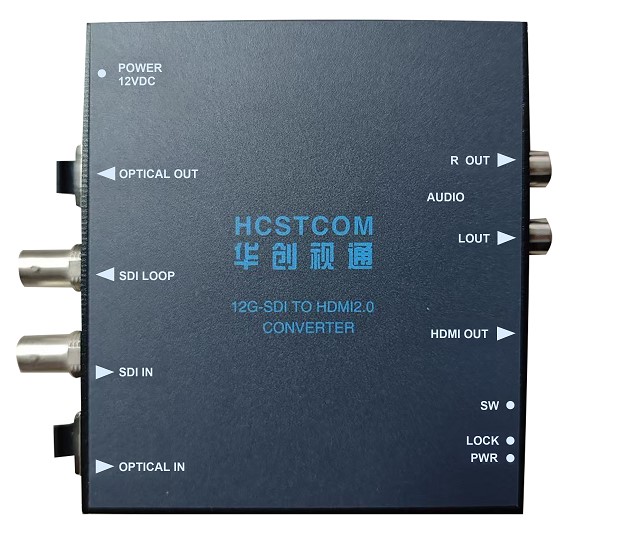

The 12G-SDI to HDMI2.0 converter produced by Beijing HCSTCOM Co.,Ltd converts 12G-SDI signals to HDMI2.0, enabling ultra HD and 4K original images and HFR to achieve high fidelity. Itsupports 4K/ UHD HDMI or SDI signal to a long distance transmitted over fiber optic cable. It supports video source input from SDI port or Optical SFP port by DIP switch, supports1-ch 12G-SDI loop out with clock recovery function, 1-ch 12G-SDI optical SFP port output, and2-ch analog audio RCA output.It can be used together with our 12G-SDI fiber series products

2. Product features

? Convert 12G-SDI to HDMI 2.0, up to 4K60P;

? Supports 1-ch 12G-SDI input, or 1-ch 12G-SDI optical SFP port input;

? 1-ch 12G-SDI loopout, supports clock recovery function.

? 1-ch 12G-SDI SFP optical port output, supporting single-mode single-fiber transmission to 10-80km;

? supports HDMI embedded audio output, or de-embedded 2-ch analog audio RCA output;

? supports 10-bit 4:2:2 Input and Output up to 4K 60Hz;

?The SDI embedded audio supports 16 channels and 24 bits;

? AC-3 embedded Audio passthrough(Dolby Digital);

? LED display power supply and signal lock status;

? 12V dc power supply.

3.Technical Specifications

Video Formats	(4K) 4096 x 2160p、(UHD) 3840 x 2160p、(2K) 2048 x 1080p、(HD) 1920 x 1080p、(HD) 1920 x 1080i、(HD) 1280 x 720p、(SD) 720 x 576i、(SD) 720 x 480i
12G-SDI Video Input	·1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 ·YCbCr 4:2:2/4:4:4 ·RGB 4:4:4, ·10-bit
12G-SDI Video Resolution	·1x 12 Gb SDI (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 ·1x 6 Gb SDI (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30 (UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30 ·1x 3 Gb SDI (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p* 50, 59.94, 60 ·1x 1.5 Gb SDI (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 30,50, 59.94, 60 ·1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94
12G-SDI Optical Input	1x 12G-SDI fiberLC connector，SMPTE 297/259/292/424/2081/2082 ·Nominal Wavelength:Rx 1260 nm (Min)， 1620 nm (Max) ·Optical Sensitivity: - 10dbm(Min12gbps)， - 14dbm(Min3gbps)
12G-SDI Optical Output	1x 12G-SDIfiber LC connector, SMPTE259/292/424/2081/2082 Nominal Wavelength：Tx 1260 nm（Min）、1310 nm（TYP）、1620 nm（Max）（CWDM wavelength optional） Optical Power：-5 dBm（Min），0.5 dBm（Max）
HDMI Video Output	·1x HDMI Type A connector，HDMI V2.0 ·HDR signaling metadata pass-through and optional override; ·YCbCr 4:2:2/4:4:4/4:2:0 ·RGB 4:4:4, SMPTE or Full level ·8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
HDMI Output Resolution	(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 ·(UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 ·(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 ·(HD) 1920 x 1080i 50, 59.94, 60 ·(HD) 1280 x 720p 30,50, 59.94, 60 ·(SD) 720 x 576i 50 ·(SD) 720 x 480i 59.94
Audio Pass-Through Formats	· PCM ·Dolby Digital(AC-3)
AudioOutput Digital	·SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
AudioOutput Digital	·HDMI embedded audio, 24-bit, 8-channel
Audio Output Analog	· 2x RCA style connector, 2-channel -10dBu (nominal)
Size (w x d x h)	(105 x 92x 29 mm)
Weight	(0.3 kg)
Power	12V DC，10W 100-240V AC, 50/ 60hz
Environment	Safe Operating Temperature：0 to40℃ Safe Storage Temperature (Power OFF)：-40 to60℃ Operating Relative Humidity：10-90% noncondensing

*The Converteruse approximately 10 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack with otherdevices.
