1、OVERVIEW
Traditional video matrix willgenerate flashing, black, jitter, delay and signal interruption and other shortcomings in switching process. HC2000, the new seamlesshybridswitching matrix, hascompletely overcome the shortcomings of traditional matrix, withno flicker, no black, no delay and no signal interruption in switching process. Andit canachieve the input and outputofCVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseTandoptical fiber.
HC2000 seamless hybrid matrixisconsisted of maincabinet, input and output cards and communication card:

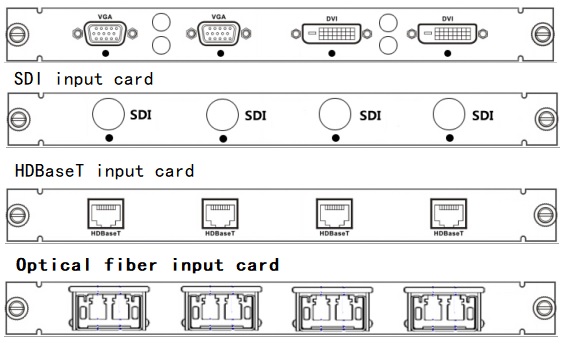

Input Card:
⊙ Hybrid input card (4 optional interfaces, CVBS, VGA, YPbPr, HDMI, DVI)

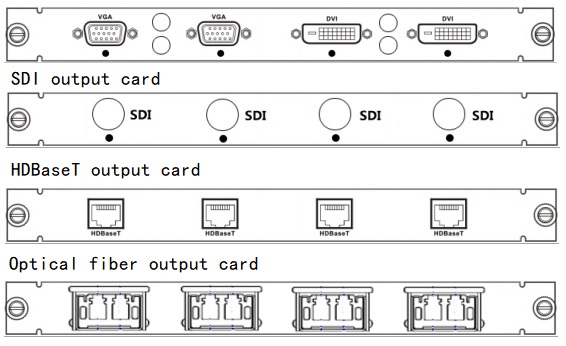

Output card
⊙ Hybrid output card (4 optional interfaces, CVBS, VGA, YPbPr, HDMI, DVI, SDI)
Communication card
⊙RS232 and Ethernet communication card
⊙Full-digital switching;
⊙Available input and output for any signal;
⊙Real-time seamless switching;
⊙Adaptive input resolution, adjustable output resolution;
⊙HDMI interface, compatible with DVI1.0 and HDMI1.4, support HDCP1.2, support Blu-ray player and support DeepColor;
⊙Digital processing of analog input for CVBS, VGA and YPbPr, ADC sampling frequency up to 205Mhz, 24-bit internal image processing, true color reproduction, the highest resolution up to 1920x1200@60Hz;
⊙CVBS input integrates advanced 3D adaptive comb filter and de-interlace processing, automatic identification for PAL, NTSC;
⊙SDI input, supports 3G/HD/SD-SDI, the rate of 143Mbps ~ 2.97Gbps, compatible with serial video standards, e.g. SMPTE 259M, 292M, 344M, 424M, ITU R BT.601, ITU R BT.1120;
⊙Support input and output of analog audio;
⊙Support SDI audio embedding and de-embedding (SMPTE291);
⊙4.3 inch (32x32) /9.7 inch (72x72), touch-screen operation, beautiful and fast.
⊙Support scene store and recall.
⊙Support RS232 and Ethernet control, open control protocol, beneficial for third-party serial control;
⊙Support site protection when power off;
⊙Standard plug-in industrial cabinet, 1 card and 4 channels;
⊙1+1 redundant power supply (optional);
1.3.1 Cabinet
|
Size(L*D*H) |
Maximum input channel |
Maximum output channel |
|
3U(43x43x13cm) |
16 |
16 |
|
5U(43x43x22cm) |
32 |
32 |
|
11U(43x43x49cm) |
72 |
72 |
|
20U(43x43x90cm) |
144 |
144 |
1.3.2 Video Input Signal
|
CVBS input |
||
|
Impedance |
75Ω |
|
|
Level |
1Vp-p |
|
|
TV System |
Adaptive NTSC, PAL |
|
|
Interface type |
BNC |
|
|
YPbPr input |
||
|
Impedance |
75Ω |
|
|
Level |
0.7V |
|
|
Resolution |
480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60 |
|
|
SyncType |
SOG |
|
|
Interface type |
DB15FM,(1-Cr,2-Y,3-Cb) |
|
|
VGA input |
||
|
Impedance |
75Ω |
|
|
Level |
0.7V |
|
|
Resolution |
Common resolution ofVESA, 640x480@60Hz～1920x1200@60Hz |
|
|
SyncType |
Independent horizontal and vertical signal |
|
|
Interface type |
DB15FM |
|
|
HDMI/DVI input |
||
|
Clock frequency |
25Mhz-225Mhz |
|
|
Standards |
DVI1.0 HDMI1.4 HDCP1.2 |
|
|
Interface type |
Type A 19pin HDMI orDVI-D |
|
|
SDI input |
||
|
Bit Rate |
143Mbps～2.97Gbps |
|
|
Standards |
SMPTE 259M、292M、344M、424M, compatible withSMPTE291 in audio |
|
|
Interface type |
BNC |
|
|
HDBaseT iuput |
||
|
Transmission distance |
≤100m (cat5,cat6) |
|
|
Maxresolution |
1920x1080@60 |
|
|
HDCP standard |
HDCP1.2 |
|
|
Optical fiber input |
||
|
Optical interface |
LC |
|
|
Wave length |
850nm,1310nm，1550nm are optional |
|
|
Transmission mode |
Multi-mode andsingle-mode are optional |
|
|
Rate |
3Gbps |
|
|
Transmission distance |
2Km,10Km,20Km,40Km,80Km are optional |
|
1.3.3 Analog Audio Input
|
Interface |
3.5mmstereo jack |
|
Level |
0.5-2.0Vp-p |
|
Impedance |
600Ω |
|
sampling frequency |
48Khz |
1.3.4 Video Output Signal
|
YPbPr output |
||
|
Impedance |
75Ω |
|
|
Level |
0.7V |
|
|
Resolution |
576i,720P50/60,1080i50/60, 1080P25/30/50/60 |
|
|
Sync Type |
SOG |
|
|
Interface type |
DB15FM,(1-Cr,2-Y,3-Cb) |
|
|
VGA output |
||
|
Impedance |
75Ω |
|
|
Level |
0.7V |
|
|
Resolution |
1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200 |
|
|
SyncType |
Independent horizontal and vertical signal |
|
|
Interface type |
DB15FM |
|
|
HDMI/DVI output |
||
|
Clock frequency |
25Mhz-225Mhz |
|
|
Standards |
DVI1.0 HDMI1.4 HDCP1.2 |
|
|
Resolution |
1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200, 576i,720P50/60,1080i50/60, 1080P25/30/50/60 |
|
|
Interface type |
Type A 19pin HDMI or DVI-D |
|
|
SDI output |
||
|
Bit Rate |
143Mbps～2.97Gbps |
|
|
Standards |
SMPTE 259M、292M、344M、424M,compatible with SMPTE291 in audio |
|
|
Interface type |
BNC |
|
|
HDBaseT output |
||
|
Transmission distance |
≤100m (cat5,cat6) |
|
|
Maxresolution |
1920x1080@60 |
|
|
HDCP standard |
HDCP1.2 |
|
|
Optical fiber output |
||
|
Optical interface |
LC |
|
|
Wave length |
850nm,1310nm，1550nm are optional |
|
|
Transmission mode |
Multi-mode and single-mode are optional |
|
|
Rate |
3Gbps |
|
|
Transmission distance |
2Km,10Km,20Km,40Km,80Km are optional |
|
1.3.5 Analog Audio Output
|
Interface |
3.5mm stereo jack |
|
Level |
0.5-2.0Vp-p |
|
Impedance |
600Ω |
1.3.6 Power Consumption
|
Hybrid input card |
8W/card |
|
SDI input card |
10W/card |
|
HDBaseT input card |
30W/card |
|
Optical input card |
20W/card |
|
Hybrid output card |
10W/card |
|
HDBaseT output card |
20W/card |
|
Optical fiber output card |
20W/card |
|
3U without input or output card |
20W |
|
5U without input or output card |
20W |
|
10U without input or output card |
40W |
|
20U without input or output card |
80W |
1.3.7 Operating Conditions
|
InputVoltage |
AC 90V～260V 50/60Hz |
|
Operatingtemperature |
0～50℃ |
|
Storage temperature |
0～65℃ |
|
Operating humidity |
<90%RH |
